Tech Talk

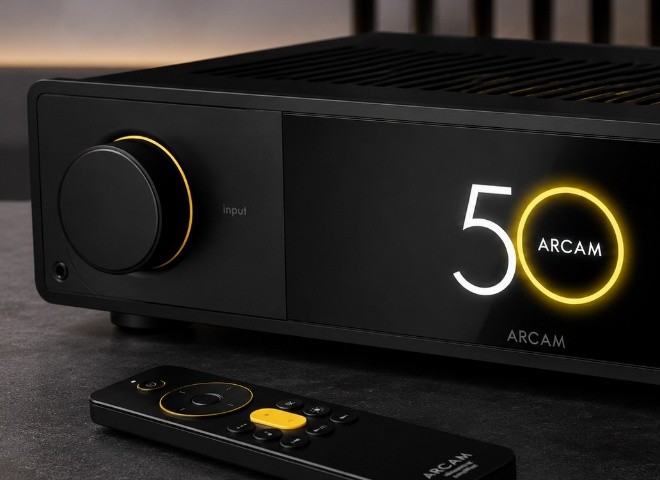

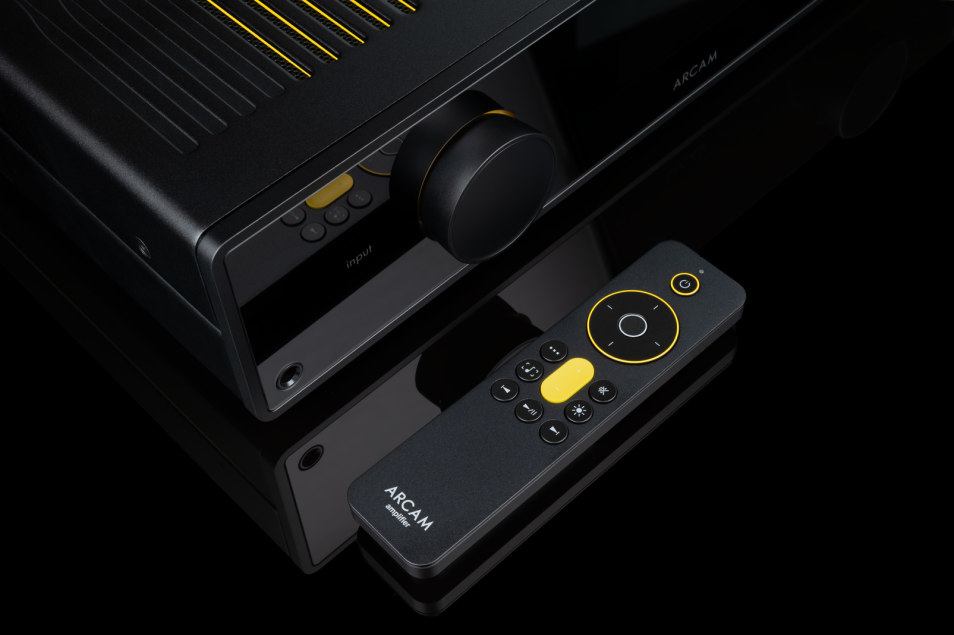

The A50 - A Signature Edition Amplifier Celebrating 50 Years of Engineering Excellence

As ARCAM marks its 50th anniversary, the brand introduces a significant new amplifier platform, its first dual‑mono Class G integrated amplifier delivering 150 watts per channel into 8 ohms and 220 watts into 4 ohms.

While the performance figures are substantial, this new design reflects something deeper; a continued focus on how amplifiers behave in real listening conditions and how careful engineering can translate directly into greater clarity, control and musical engagement.

Dual‑Mono Architecture: Independence Where It Matters

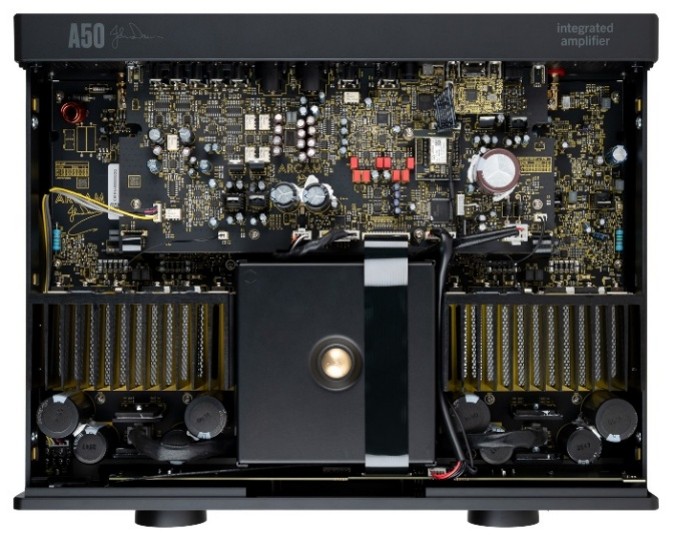

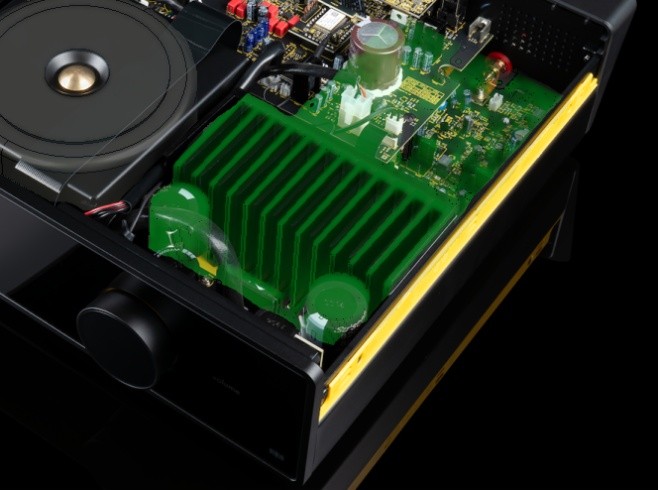

At the heart of the A50 is a true dual‑mono topology, with independent amplification and power delivery for each channel.

By separating critical resources, signal paths, power supply sections, and grounding structure, this architecture reduces unwanted interaction between channels, particularly under dynamic conditions where demands can vary significantly.

The result is a presentation that remains stable and composed, even during complex musical passages, producing:

• More precise stereo imaging
• Greater separation and clarity across the soundstage
• Improved control during high-energy transients

It’s an approach that ensures each channel operates in its own environment, preserving the integrity of the musical signal.

This approach is also reflected in the preamplifier design, with a full suite of analogue and digital inputs, including MC and MM pickup cartridges, HDMI eARC and Bluetooth 5.4 (including Auracast). All signals are converted to balanced mode as soon as practicable all the way down to the power amplifier modules. This ensures minimal hum and noise degradation and optimal channel separation.

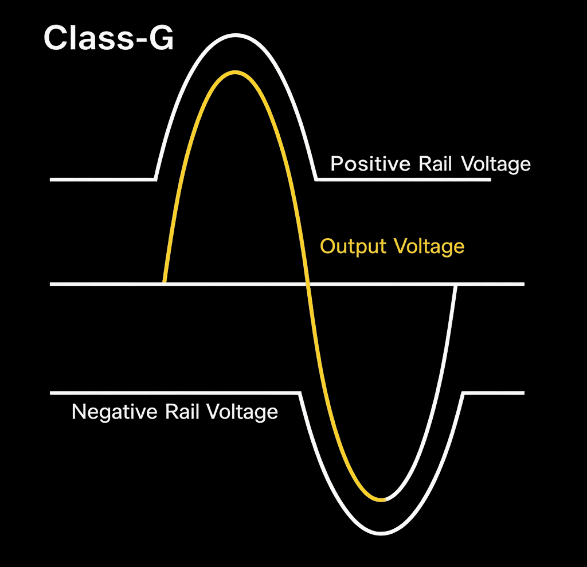

At lower levels, where most listening occurs, the amplifier remains on its lower voltage rails, thus operating with the efficiency of a 30W class AB amplifier. In addition, signal modulated bias extends the effective Class A region, eliminating unpleasant crossover distortion. This results in a highly linear, low-noise performance that reveals the finest musical details.

As demands increase, it transitions seamlessly to higher rails, providing the voltage and current required for effortless dynamic headroom.

In some designs, the higher rails are switched hard on once a threshold is reached. In contrast, the ARCAM implementation tracks the signal envelope, allowing rail engagement to follow the music more progressively and transparently.

Careful optimization ensures these transitions remain effectively inaudible, maintaining a consistent sonic character regardless of the music’s demands.

At the same time, fast and controlled current delivery enables the amplifier to respond immediately to transient signals, preserving timing and impact.

Attention to grounding and layout further contributes to a low noise floor, allowing subtle spatial and tonal information to emerge more clearly.

The two Cambridge graduates planned to build just 50 of these affordable 30WPC amplifiers and hopefully sell them to their friends and fellow university students. They found they had given birth to an industry classic, shipping almost 32,000 worldwide over the next 10 years and setting up the foundations of ARCAM as a world-renowned hi-fi brand.

That vision remains central to the brand to this day, and Dawson has stayed closely involved with the company he co-founded.

He has been responsible for the development of ARCAM’s proprietary Class G technology and much of the surrounding architecture incorporated in its modern amplifiers. Although long past the normal age of retirement, he continues to be highly motivated by both the theoretical and practical engineering aspects of audio design.

Fittingly, this amplifier reflects that original philosophy not just in its specifications, but in how those specifications translate into a natural, engaging, and reliable listening experience.
